| Transformer-Parameters | ||||||
| Parameters, Appearance, Aize, Function - Customizable | ||||||
| Capacity | 3KVA~60KVA Series | Coil Material | Copper or Aluminum | |||
| AC Input | Phase | 3φ4W | Steel sheet material | WISCO Silicon Steel | ||
| Voltage | AC 380V(Optional, e.g.:110V, 210V, 400V, 415V, 460V, 600V and More) | Power Factor | 0.8 to 1 Optional | |||
| Frequency | 50Hz/60Hz/400HZ | Efficiency | 98% | |||
| AC Output | Phase | 3φ4W | Withstand Voltage | 3000V/1min | ||
| Voltage | AC 220V 200V(Optional,e.g.: 110V, 210V, 400V, 415V, 460V, 600V and More) | Temperature Rise | Winding temperature rise<70K | |||
| Frequency | 50Hz/60Hz | Insulation Grade | F/H Grade(optional) | |||
| Electric Current | 7A~157A | Impedance Voltage Drop | ≤4% | |||
| Display | Input Voltage | LED/Pointer | Insulation Resistance | DC500C≥100MΩ | ||
| Output Voltage | Connecting Groups | Yyn0/Dyn11/Ynd11 | ||||
| Electric Current | Yellow/Green/Red Light | Waveform Distortion(THD) | No Distortion | |||
| Weight（kg） | 40kg~270kg | No-load loss | ≤2% | |||
| Volume(mm) | L*W*H(Different powers, Different sizes) | Protection grade | Customizable（IP22~IP68) | |||
| Operation Temperature | -20℃～+45℃ | Noise | ≤60db | |||
| Relative Humidity | ≤90% | Chassis Material | Steel plate shell, Surface electrostatic spraying |
|||
| Altitude | Optional | Cooling Mode | Fan cooling Natural cooling |
|||
| Warranty | 2 Years | After-sale service | Within 1 day | |||

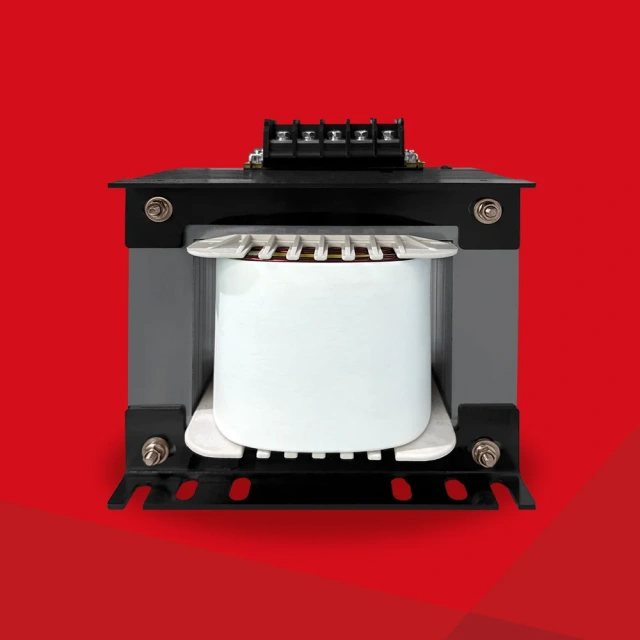

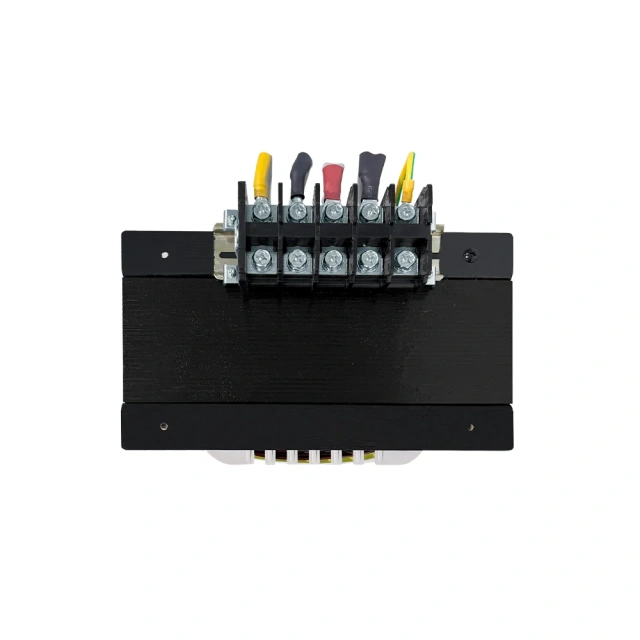

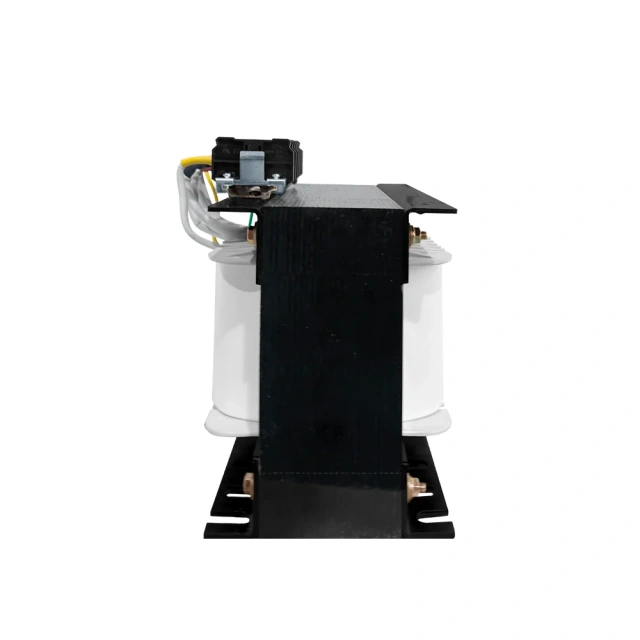

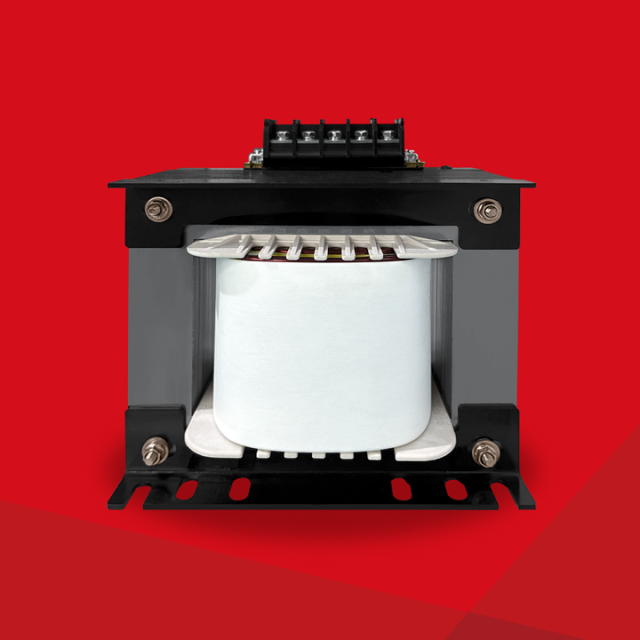

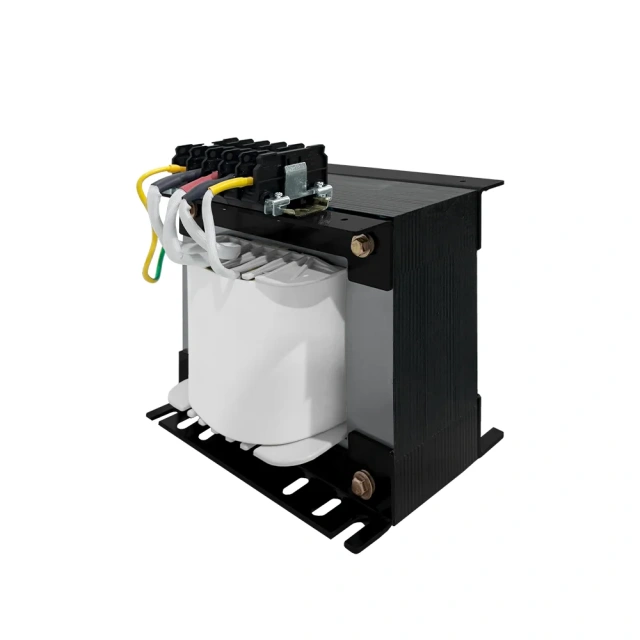

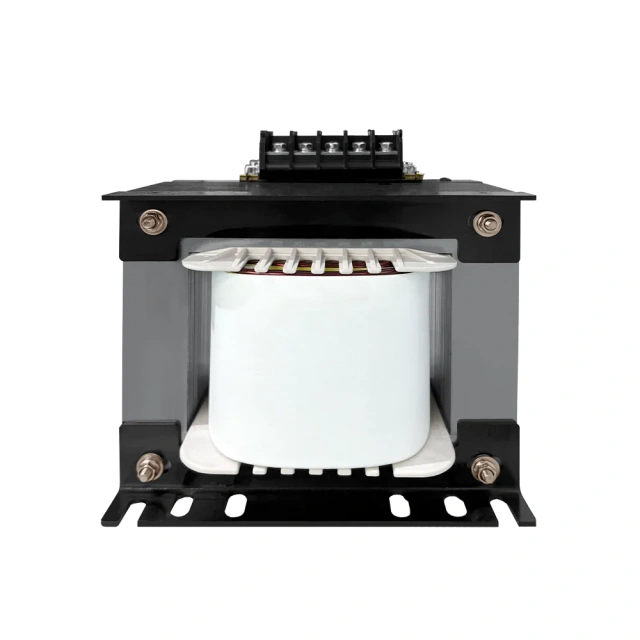

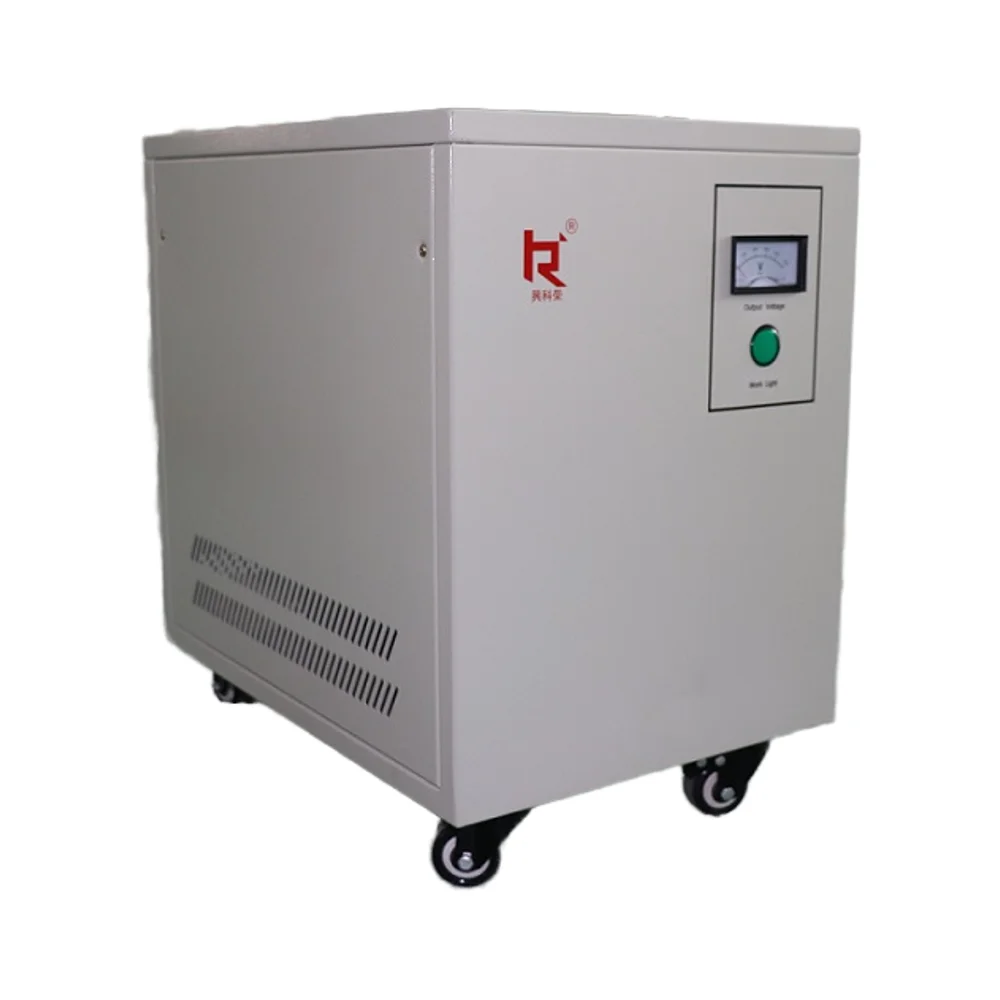

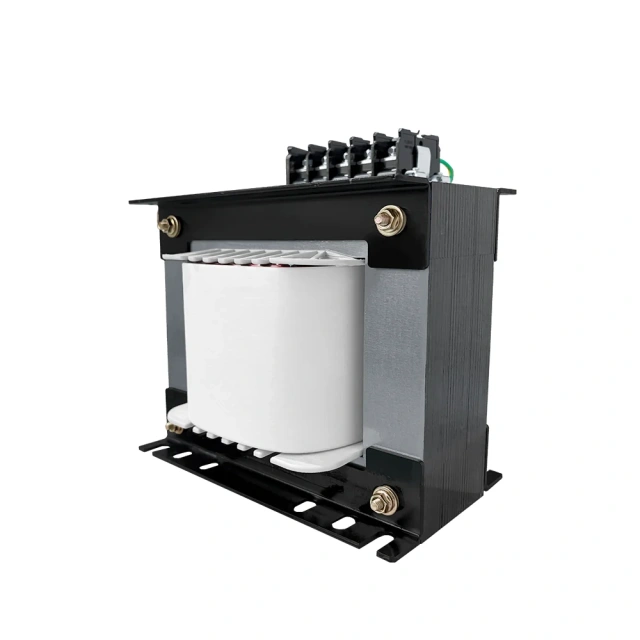

| Without Outer Box | With Outer Box |
 |
 |
 |
 |
| 1.WISCO Silicon Steel | Ensure:100% Brand New Advantage: Low core loss , High magnetic induction |
| 2.Enameled Wire | optional: Pure Copper | Pure aluminum （Brand-new) Advantage: Excellent Insulation |
| 3.Copper Screw | Ensure:100% New Pure Copper |
| 4.Insulation Board Cable | Insulation, Heat resistant,Moisture resistance |
| 5.Brushless Cooling Fan | Long lifespan, Quieter Operation |
| 6.Pure Copper Wire | Low resistivity, Excellent conductivity |
| Click Here To Get Price | |
| Question 1.: | Are you a manufacturer? |
| Reply: Absolutely.Our factory is a true industrial power supply manufacturer.
Welcome to verify our factory any time! |
|
| Question 2.: | How is the quality of your product? |
| Reply: Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction. | |
| Question 3.: | What is the delivery time? |
|
Reply:The standard delivery time is 7-10 working days. it is more than 15 working days. |
|
| Question 4.: | Can we customize the logo? |
| Reply:certainly.Our own factory supports ODM/OEM orders. | |
| Question 5.: | What is the minimum order quantity? |
| Reply:Minimum order quantity for standard products is 1 unit. | |
| Question 6.: | Why choose SINCRON products? |
|
Replay: A. Material: SINCRON uses international first-line brand raw materials and guarantees 100% brand new, allowing you to clearly understand where your cost consumption is. |
|
