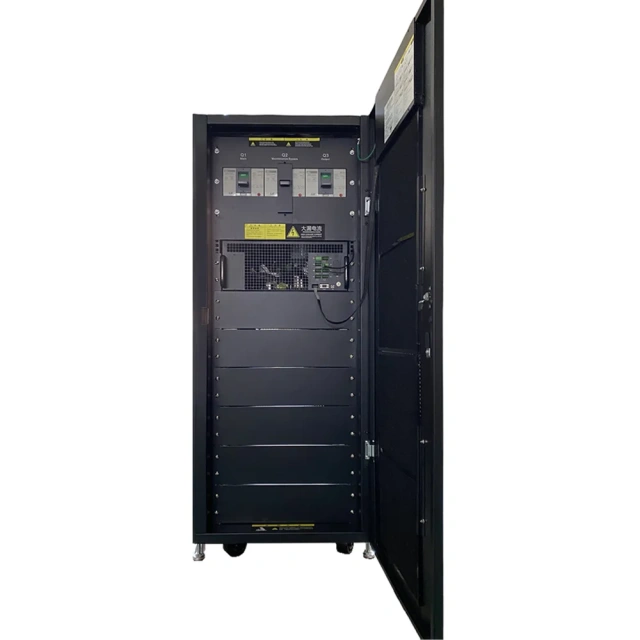

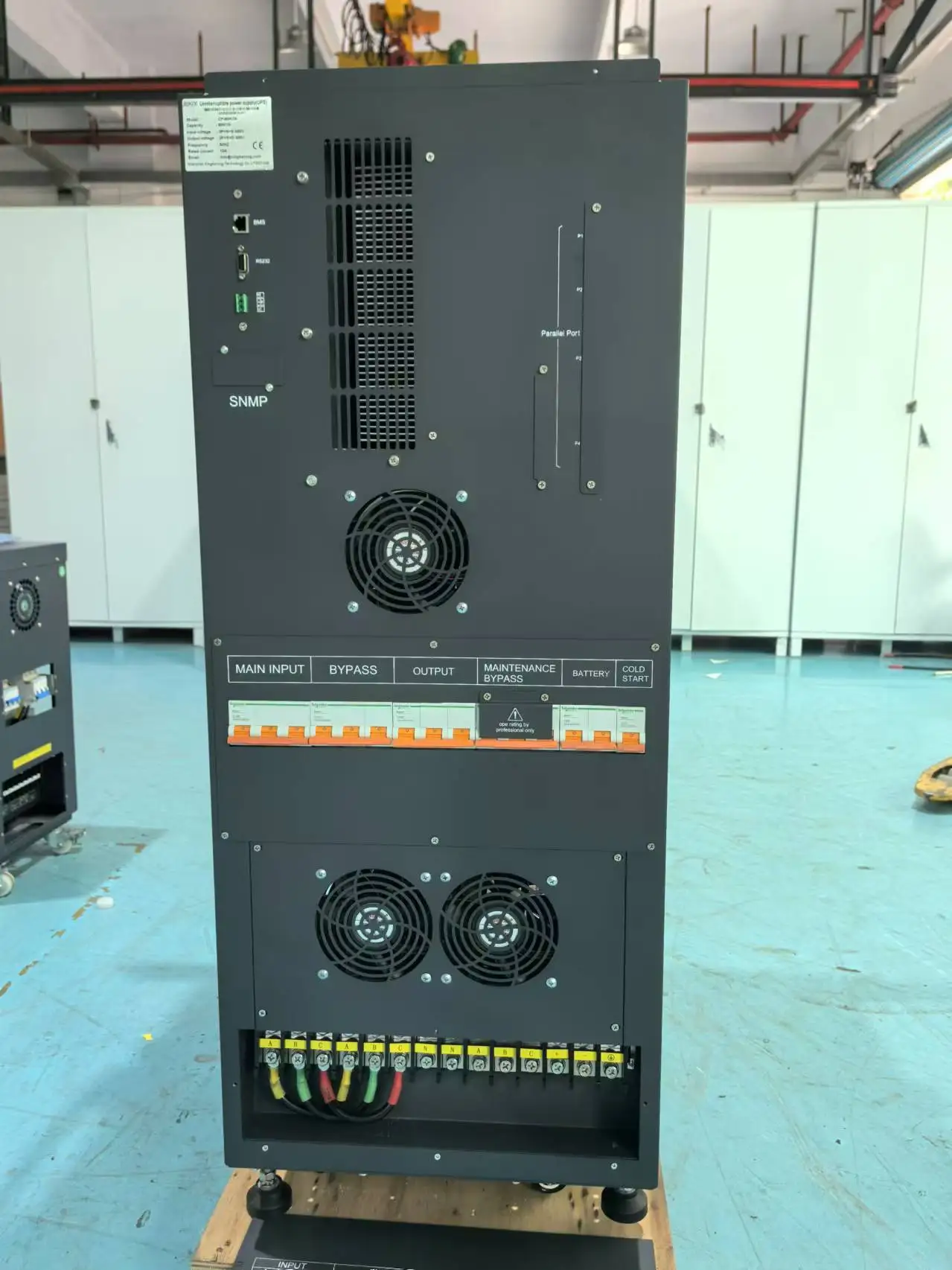

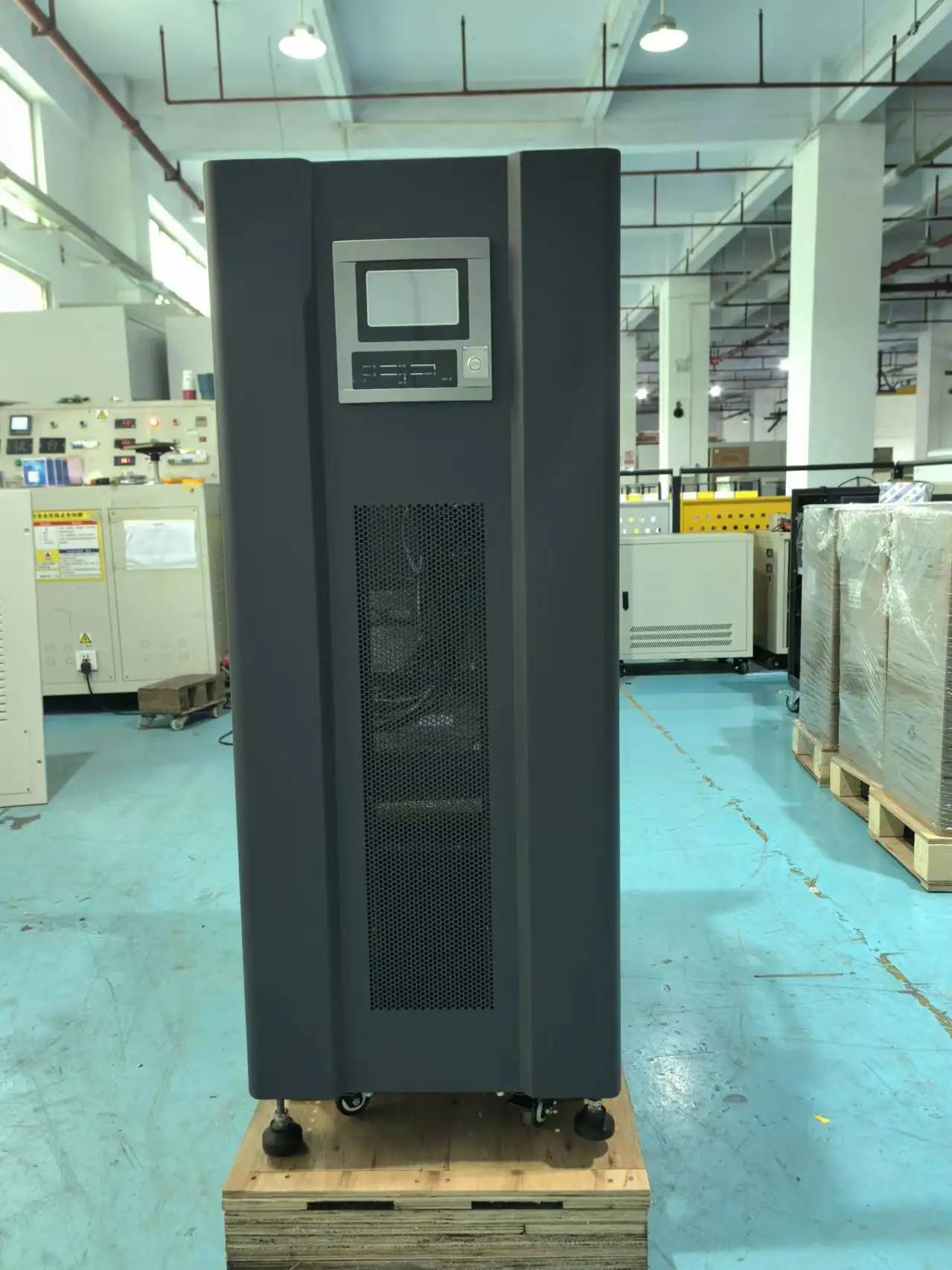

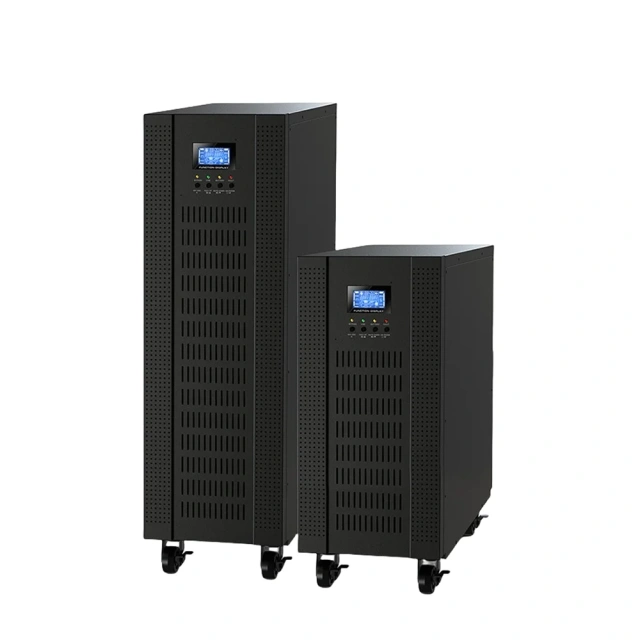

| Customized high quality Three Phase 20KVA 30KVA 40KVA 50KVA 60KVA 80KVA UPS Power Backup Online Double Conversion UPS |
Advantages:
Xingkerong Team strongest is customzied,like three phase 220v UPS,three phase 208v UPS, three phase 440V UPS,Three phase 480V UPS etc voltages or other any specical technicals on our power electrical area,all we can support it. welcome to join us,win win together~.~
Main Features:
1. Intelligent inspect and monitor UPS systems every second
2. The sixth generation IGBT inverter technology
3. High definition touch screen LCD display and LED indicators, can show directly UPS status and operation, data records in table format, and events records.
4. Adopts knock-down modular design, easy to maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit, can save electric much; CP33 UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with 80% more life than before.
5. Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
6. Well-equipped protection function, including alarm function and excellent input and output under voltage overflow protection, input surge protection, phase failure protection, battery overcharge and over discharge protection, output overload short circuit protection, over heat protection and so on.
7. Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal, realize output imbalance 100% load.
8. Optional input harmonic filter or Twelve-pulse rectifier can restrain input harmonic pollution efficiently, improve UPS input power factor, and minish input harmonic current.
9. Optional battery inspection module, can test specification of every battery, and show on display. If battery faulty, will alarm immediately and inform administrators.
10. Special set: Can set UPS work status according to requirements of electric. User can choose from UPS operate mode, ECO save energy operate mode and EPS operate mode.
Specifications:
| 3P/3P ONLINE UPS SELECTION GUIDE | ||||||||||||
| Model | GL33 10K | GL33 15K | GL33 20K | GL33 30K | GL33 40K | GL33 60K | GL33 80K | GL33 100K | GL33 120K | GL33 160K | GL33 200K | |
| CAPACITY | 8 KW | 12 KW | 16 KW | 24 KW | 32 KW | 48 KW | 64 KW | 80 KW | 96 KW | 128KW | 160KW | |
| INPUT | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||||||
| Frequency | 50/60 Hz ± 10 % | |||||||||||
| INVERTER | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Precision | Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%) | |||||||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||||
| Max. Synchronisation Speed | ±1 Hz/s | |||||||||||
| Waveform | Pure Sinewave | |||||||||||
| Total Harmonic Distortion (THDv) | < 2% (Linear Load) ; < 5% (Non-linear Load) | |||||||||||
| Phase Displacement | 120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load) | |||||||||||
| Dynamic Recovery Time | 3 cycles at 98 % of the static value | |||||||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||||
| Admissible Crest Factor | 3:1 | |||||||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||||
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% | |||||||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit | |||||||||||
| STATIC BYPASS | ||||||||||||
| Type | Solid state | |||||||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Activation Criterion | Microprocessor control | |||||||||||
| Transfer Time | Zero | |||||||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||||
| Transfer to Bypass | Immediate, for overloads above 160% | |||||||||||
| Retransfer | Automatic after alarm clear | |||||||||||
| MAINTENANCE BYPASS | ||||||||||||
| Type | Without interruption | |||||||||||
| Voltage | 3 x 400V (3Ph + N) | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Overall Efficiency (Line mode) | Line Mode | 90% | 91% | 92% | 93% | |||||||
| Battery Mode | 90% | 91% | 93% | 93% | ||||||||
| BATTERY & CHARGER | ||||||||||||
| Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) | |||||||||||
| Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) | |||||||||||
| Charging Method | CC/CV | |||||||||||
| Charging Current | Default 10A, Max. = Capacity / Battery Voltage | Default: 10A. Max. 40A | ||||||||||
| Charging Voltage | 432 VDC (Based on 32pcs batteries) | |||||||||||
| PHYSICAL | ||||||||||||
| Dimension D x W x H (mm) | 656 x 405 x 817 | 656 x 405 x 941 | 821 x 432 x 1159 | 975 x 554 x 1286 | 975 x 635 x1326 | 1051×705×1646 | ||||||
| Net Weight (kgs) | 118 | 120 | 179 | 241 | 278 | 400 | 471 | 573 | 650 | 760 | 790 | |
| * Product specifications are subject to change without further notice | ||||||||||||
 |  |
| Question 1.: | Are you a manufacturer? |
| Reply: Absolutely.Our factory is a true industrial power supply manufacturer. Welcome to verify our factory any time! | |
| Question 2.: | How is the quality of your transformer? |
| Reply: Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction. | |
| Question 3.: | What is the delivery time? |
Reply:The standard delivery time is 7-10 working days. it is more than 15 working days. | |
| Question 4.: | Can we customize the logo? |
| Reply:certainly.Our own factory supports ODM/OEM orders. | |
| Question 5.: | What is the minimum order quantity? |
| Reply:Minimum order quantity for standard products is 1 unit. | |
| Question 6.: | Why choose SINCRON products? |
Replay: A. Material: SINCRON uses international first-line brand raw materials and guarantees 100% brand new, allowing you to clearly understand where your cost consumption is. | |
