High capacity UPS 400kva/600kva Ups 3 phase 480V Price Power Backup Uninterrupted Power Supply Ups 480kw ups For Server
Advantages:
Xingkerong Team strongest is customzied,like three phase 220v UPS,three phase 208v UPS, three phase 440V UPS,Three phase 480V UPS etc voltages or other any specical technicals on our power electrical area,all we can support it. welcome to join us,win win together~.~
Features:
1.Online double-conversion low frequency with isolated transformer
2.Full Dual-DSP control technology
3.94% high efficiency
4.Output power factor 0.8 or 0.9 optional
5.N+X redundancy parallel up to 6 units
6.Touch color LCD display
7.LBS synchronization
8.Standard emergency power off (EPO)
9.Intelligent battery management
10.Communications: RS232, RS485, Dry contact, SNMP(optional)
Benefits:
1.Dual DSP convenient for debugging and maintenance
2.Low frequency with isolated transformer strengthen the system safety
3.Intelligent management increase the battery life
Specifications:
| 3P/3P ONLINE UPS SELECTION GUIDE | ||||||||||||
| Model | GL33 10K | GL33 15K | GL33 20K | GL33 30K | GL33 40K | GL33 60K | GL33 80K | GL33 100K | GL33 120K | GL33 160K | GL33 200K | |
| CAPACITY | 8 KW | 12 KW | 16 KW | 24 KW | 32 KW | 48 KW | 64 KW | 80 KW | 96 KW | 128KW | 160KW | |
| INPUT | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||||||
| Frequency | 50/60 Hz ± 10 % | |||||||||||
| INVERTER | ||||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Precision | Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%) | |||||||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||||
| Max. Synchronisation Speed | ±1 Hz/s | |||||||||||
| Waveform | Pure Sinewave | |||||||||||
| Total Harmonic Distortion (THDv) | < 2% (Linear Load) ; < 5% (Non-linear Load) | |||||||||||
| Phase Displacement | 120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load) | |||||||||||
| Dynamic Recovery Time | 3 cycles at 98 % of the static value | |||||||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||||
| Admissible Crest Factor | 3:1 | |||||||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||||
| Imbalance Output Voltage @ 100% Unbalanced Load |
<1% | |||||||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit | |||||||||||
| STATIC BYPASS | ||||||||||||
| Type | Solid state | |||||||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Activation Criterion | Microprocessor control | |||||||||||
| Transfer Time | Zero | |||||||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||||
| Transfer to Bypass | Immediate, for overloads above 160% | |||||||||||
| Retransfer | Automatic after alarm clear | |||||||||||
| MAINTENANCE BYPASS | ||||||||||||
| Type | Without interruption | |||||||||||
| Voltage | 3 x 400V (3Ph + N) | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Overall Efficiency (Line mode) |
Line Mode | 90% | 91% | 92% | 93% | |||||||
| Battery Mode | 90% | 91% | 93% | 93% | ||||||||
| BATTERY & CHARGER | ||||||||||||
| Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) | |||||||||||
| Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) | |||||||||||
| Charging Method | CC/CV | |||||||||||
| Charging Current | Default 10A, Max. = Capacity / Battery Voltage | Default: 10A. Max. 40A | ||||||||||
| Charging Voltage | 432 VDC (Based on 32pcs batteries) | |||||||||||
| PHYSICAL | ||||||||||||
| Dimension D x W x H (mm) |
656 x 405 x 817 | 656 x 405 x 941 | 821 x 432 x 1159 | 975 x 554 x 1286 | 975 x 635 x1326 | 1051×705×1646 | ||||||
| Net Weight (kgs) | 118 | 120 | 179 | 241 | 278 | 400 | 471 | 573 | 650 | 760 | 790 | |
| * Product specifications are subject to change without further notice | ||||||||||||

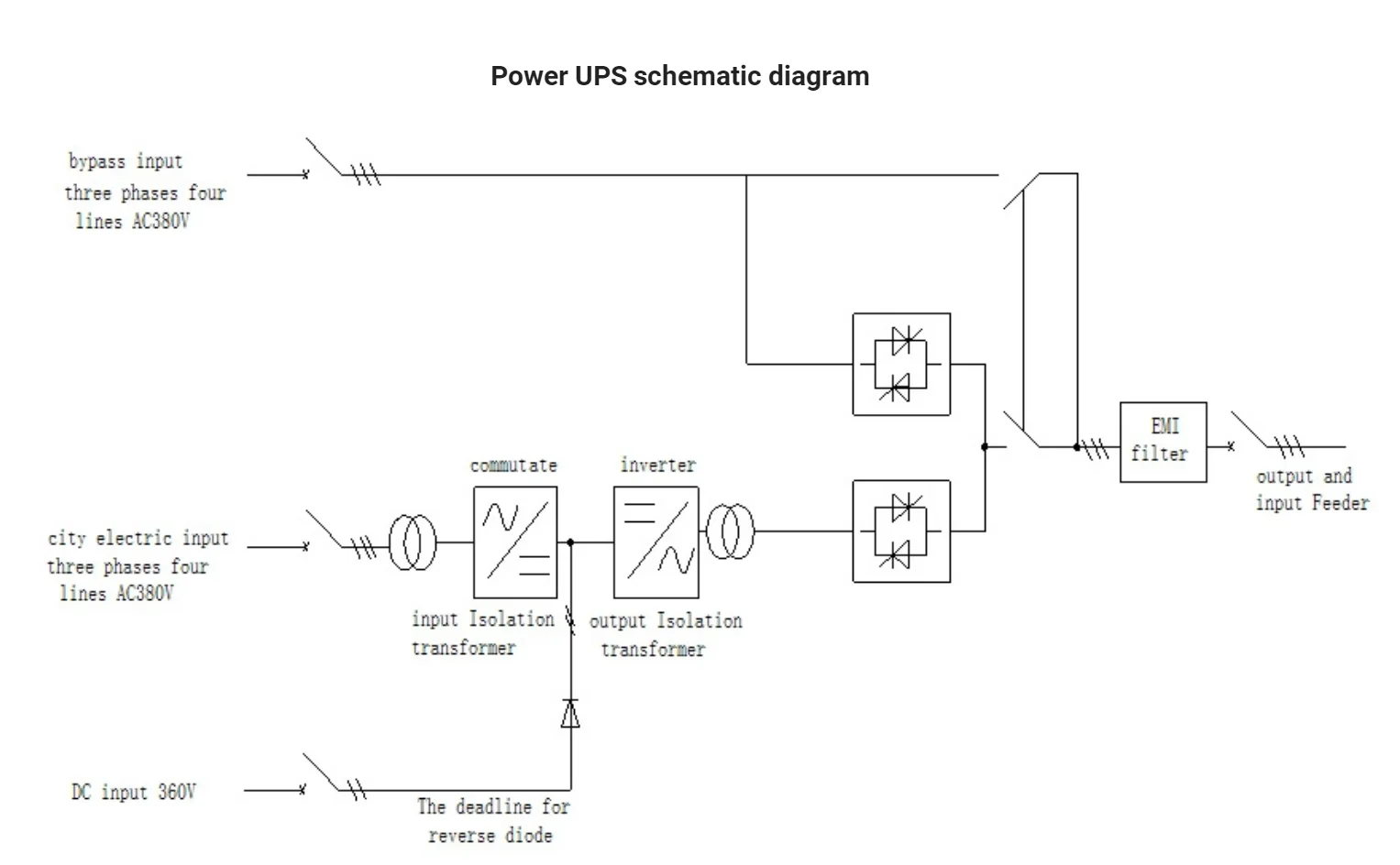

Power UPS schematic diagram

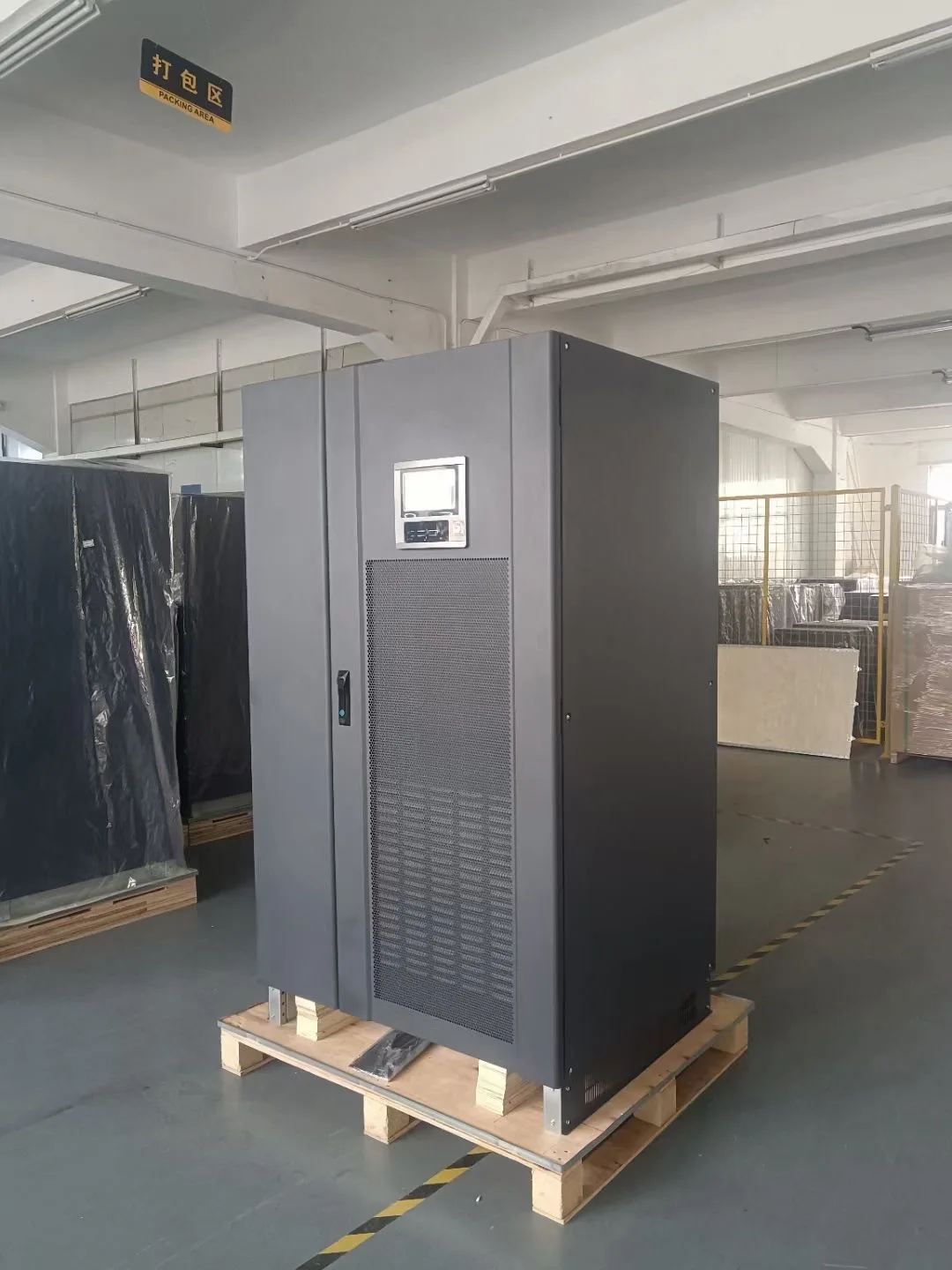

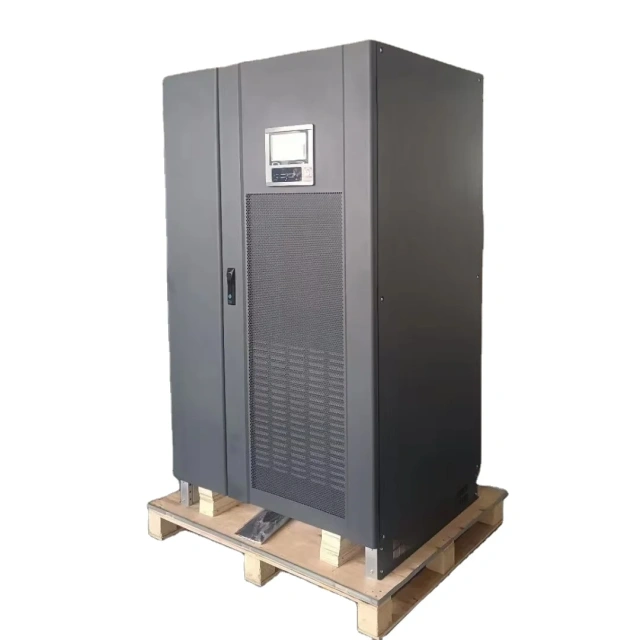

Product detais for reference:

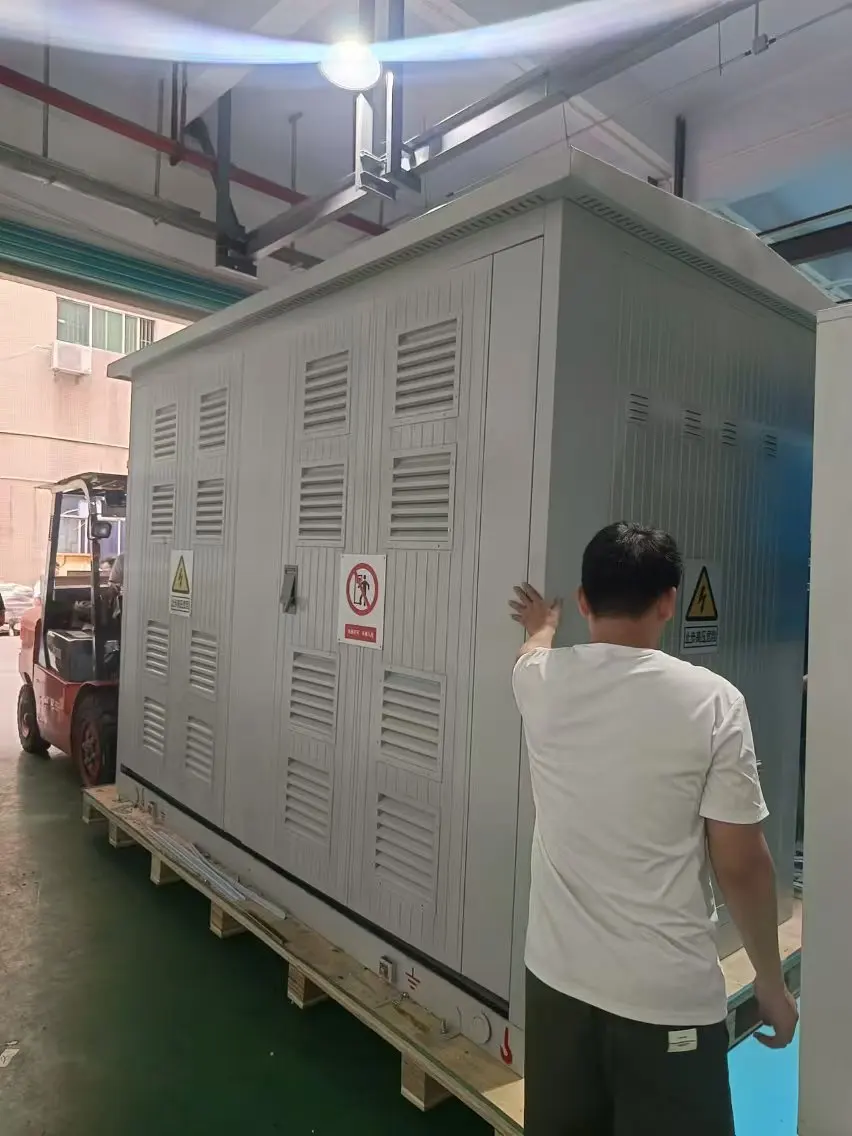

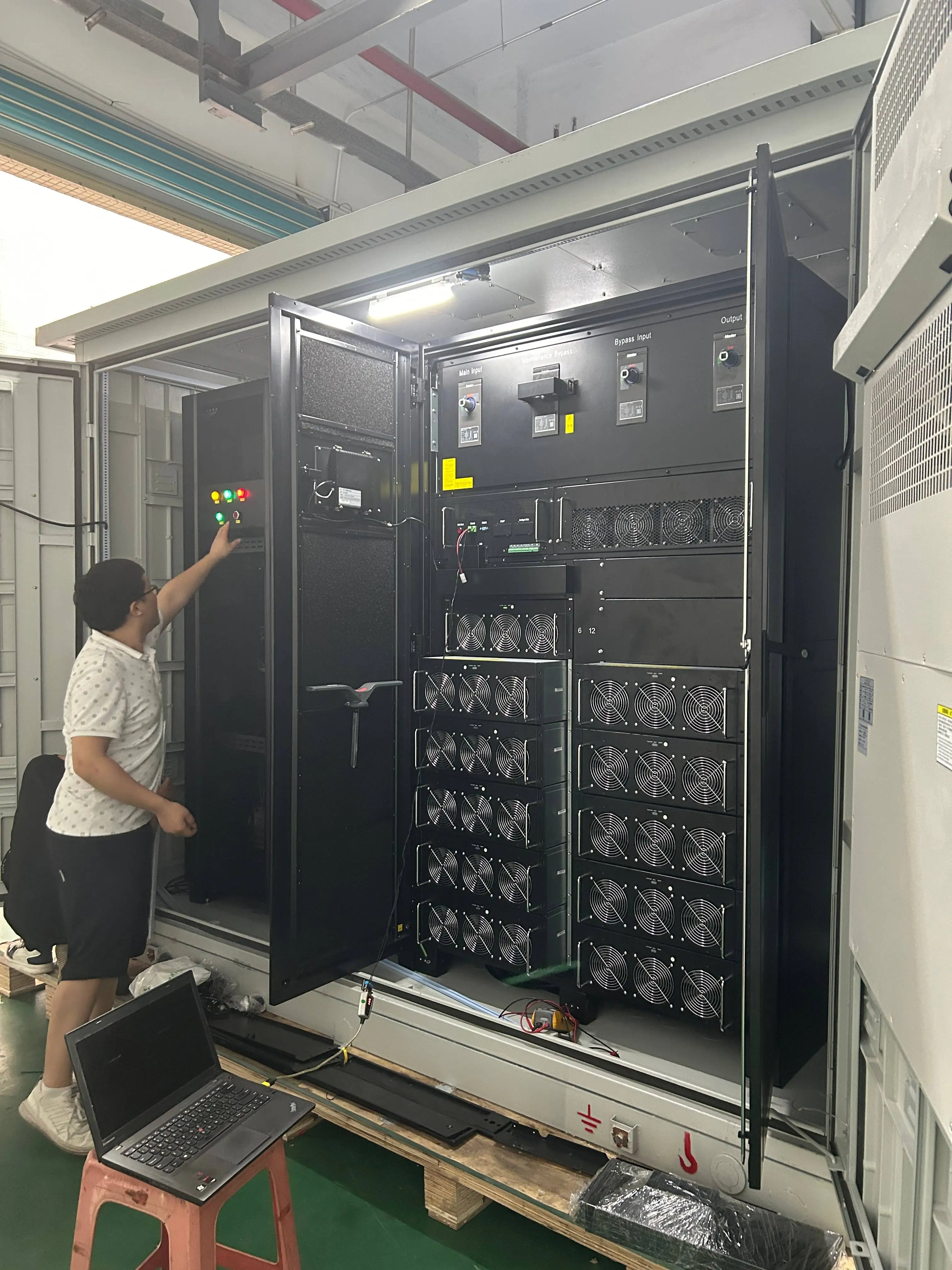

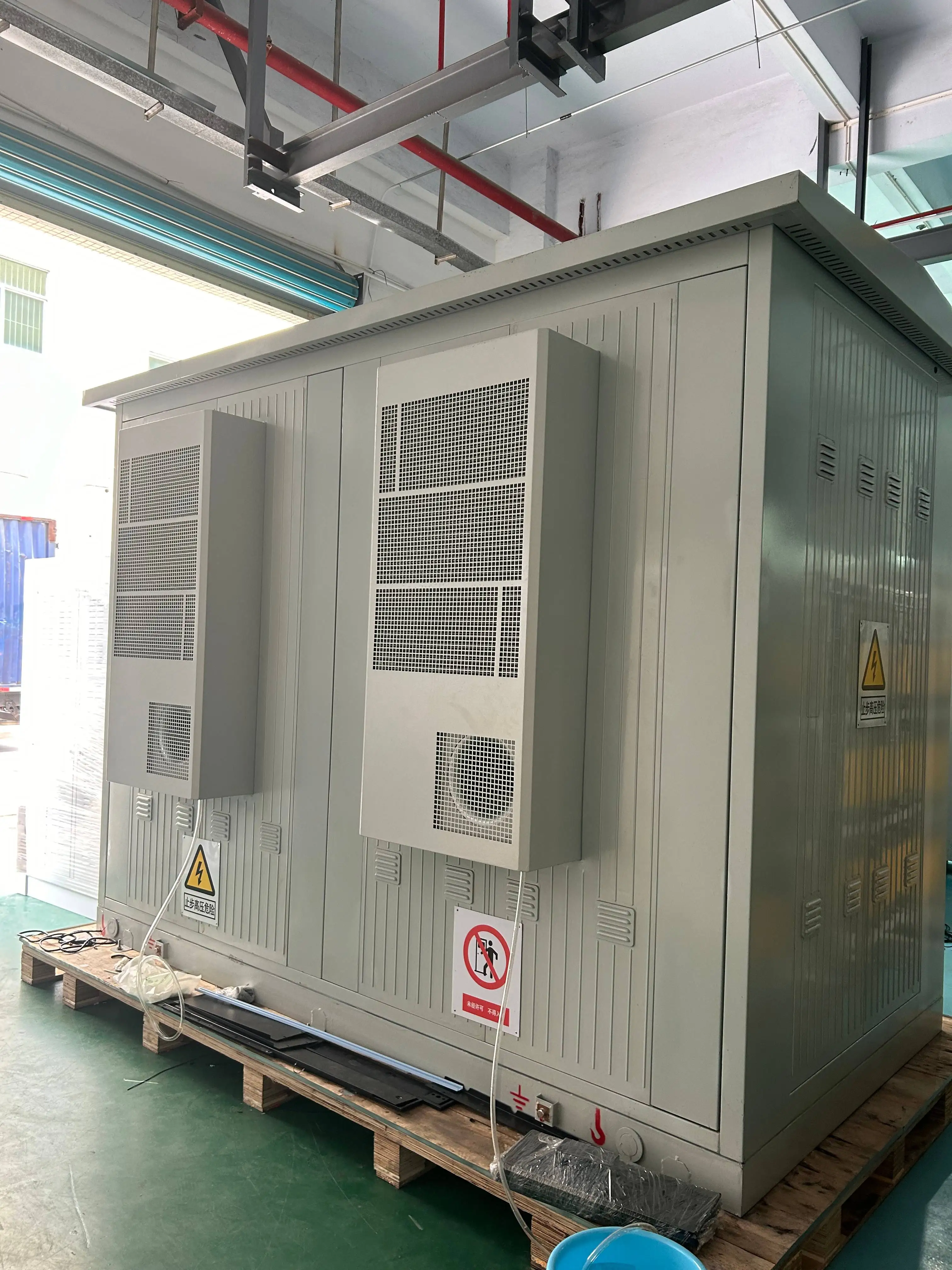

Our outdoor 600kva integrated customized UPS:
| Question 1.: | Are you a manufacturer? |
| Reply: Absolutely.Our factory is a true industrial power supply manufacturer.
Welcome to verify our factory any time! |
|
| Question 2.: | How is the quality of your product? |
| Reply: Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction. | |
| Question 3.: | What is the delivery time? |
|
Reply:The standard delivery time is 7-10 working days. it is more than 15 working days. |
|
| Question 4.: | Can we customize the logo? |
| Reply:certainly.Our own factory supports ODM/OEM orders. | |
| Question 5.: | What is the minimum order quantity? |
| Reply:Minimum order quantity for standard products is 1 unit. | |
| Question 6.: | Why choose SINCRON products? |
|
Replay: A. Material: SINCRON uses international first-line brand raw materials and guarantees 100% brand new, allowing you to clearly understand where your cost consumption is. |
|
